bend sheet metal
Bending sheet metal with a swivel v-block
For aesthetic reasons, it is often desirable to avoid traces of bending and bending marks when bending sheet metal. Swivel bending jaws reduce the marks when bending sheet metal. Virtually mark-free bending is possible.
Bending thin metal sheet
V-blocks with small v-openings are used to bend thin metal sheet. Bending thin metal sheet on the Stierli makes perfect sense as it frees up the vertical press brake from bending small or simple bent parts. Thin sheet bending work can also be carried out more quickly on the Stierli bending machine.
A manual machine or the standard CNC control are sufficient for simple bent parts. For more demanding bending sequences and very fast program times, the CNC-W or CNC-WP models are recommended for bending thin sheet metal.
Bending with angle measurement (measuring v-block)
Very precise bending is possible with the integrated angle measurement. Differing material-related spring-back tolerances, as occur frequently in copper, can be compensated for automatically. This provides a high level of process reliability and high precision when bending.
Mark-free bending
The integrated swivel jaws in the bending v-block allow virtually mark-free bending.
Companies that operate as suppliers on a contract basis appreciate this option of mark-free bending.

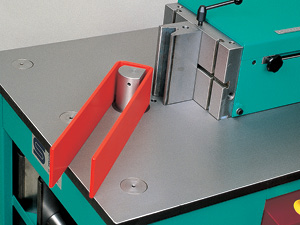

U bend and bending long-sided parts
This area is currently under construction. Further informations will follow soon.

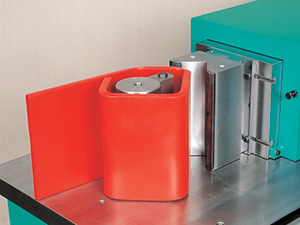

Bending enclosed shapes or contours
This area is currently under construction. Further informations will follow soon.

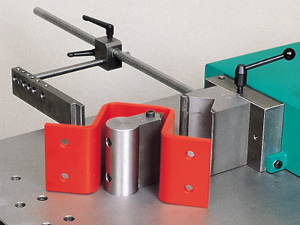

Bending thick sheet metal
The Stierli bending machine is ideal for bending thick sheet metal. Ease the burden on your press brake by bending short and thick sheets more effectively on the Stierli bending machine.
Tool changes within seconds
Changing the v-block on the Stierli bending machine is very quick. With the quick clamping system, a tool change can be completed in a matter of seconds.
38 Article
Product comparison added Product comparison added Go to product comparison
Product was already added The product was already added. Please add another product or go to the Product comparison
Product comparison added The product has been added to the comparison. Please add at least one more product to start the product comparison.
| Working power | 8.5 to / 85 kN |
|---|---|
| Tooling height | 100 mm / 4" (inch) |
| Bending capacity flat | 100 / 10 mm |
| Round bar | ø 20 mm |
| Control | Manual control |
| Working power | 12 to / 120 kN |
|---|---|
| Tooling height | 130 mm / 5" (inch) |
| Bending capacity flat | 130 / 12 mm |
| Straightening capacity | light straightening work |
| Pipe bending | 3/8" - 1 ½" |
| Round bar | ø 25 mm |
| Control | Manual control |
| Working power | 12 to / 120 kN |
|---|---|
| Tooling height | 130 mm / 5" (inch) |
| Bending capacity flat | 130 / 12 mm |
| Straightening capacity | light straightening work |
| Pipe bending | 3/8" - 1.5" |
| Round bar | ø 25 mm |
| Control | CNC Control |
| Working power | 22 to / 220 kN |
|---|---|
| Tooling height | 130 mm / 5.11" (inch) |
| Bending capacity flat | 130 / 16 mm |
| Straightening capacity | HEB 100 |
| Pipe bending | 3/8" - 1 ½" |
| Round bar | ø 30-35 mm |
| Control | NC control |
| Working power | 22 to / 220 kN |
|---|---|
| Tooling height | 130 mm / 4.72" (inch) |
| Bending capacity flat | 130 x 16 mm |
| Straightening capacity | HEB 100 |
| Pipe bending | 3/8" - 1 ½" |
| Round bar | ø 35 mm |
| Control | CNC Control |
| Working power | 82 to / 820 kN |
|---|---|
| Bending capacity flat | HP 200 |
| Pipe bending | 4" |
| Control | Manual control |
| Working power | 82 to / 820 kN |
|---|---|
| Bending capacity flat | HP 200 |
| Pipe bending | 4" |
| Control | NC control |
| Working power | 130 to / 1300 kN |
|---|---|
| Bending capacity flat | HP 280 |
| Pipe bending | 4" |
| Control | Manual control |
| Working power | 130 to / 1300 kN |
|---|---|
| Bending capacity flat | HP 280 |
| Pipe bending | 4" |
| Control | NC control |
| Working power | 220 to / 2200 kN |
|---|---|
| Bending capacity flat | HP 320 |
| Pipe bending | 4" |
| Control | Manual control |
| Working power | 330 to / 3300 kN |
|---|---|
| Bending capacity flat | HP 340 |
| Pipe bending | 4" |
| Control | Manual control |
| Working power | 330 to / 3300 kN |
|---|---|
| Bending capacity flat | HP 340 |
| Pipe bending | 4" |
| Control | NC control |
| Working power | 440 to / 4400 kN |
|---|---|
| Bending capacity flat | HP 430 |
| Pipe bending | 4" |
| Control | NC control |
| Working power | 440 to / 4400 kN |
|---|---|
| Bending capacity flat | HP 430 |
| Pipe bending | 4" |
| Control | Manual control |
| Working power | 22 to / 220 kN |
|---|---|
| Tooling height | 130 mm / 5" (inch) |
| Bending capacity flat | 130 / 16 mm (150/16) |
| Control | CNC Control |
| Working power | 42 to / 420 kN |
|---|---|
| Tooling height | 200 mm / 7.87" (inch) |
| Bending capacity flat | 200 / 20 mm |
| Straightening capacity | HEA 180 |
| Pipe bending | 3/8" - 2" (60.3mm) |
| Round bar | ø 40 mm |
| Control | Manual control |
| Typical applications | Metalwork shop / metal construction for bending and straightening |
| Working power | 22 to / 220 kN |
|---|---|
| Tooling height | 130 mm / 5" (inch) |
| Bending capacity flat | 150 / 16 mm |
| Control | CNC Control |
| Speciality | Das Top-Modell zum Stromschienen fertigen |
| Working power | 42 to / 420 kN |
|---|---|
| Tooling height | 200 mm / 7.87" (inch) |
| Bending capacity flat | 200 / 20 mm |
| Straightening capacity | HEA 180 |
| Pipe bending | 3/8" - 1 ½" |
| Round bar | ø 35 mm |
| Control | CNC Control |
| Working power | 42 to / 420 kN |
|---|---|
| Tooling height | 200 mm / 7.87" (inch) |
| Bending capacity flat | 200 / 20 mm |
| Control | CNC Control |
| Working power | 42 to / 420 kN |
|---|---|
| Tooling height | 200 mm / 7.87" (inch) |
| Bending capacity flat | 200 / 20 mm |
| Control | CNC Control |
| Speciality | Das Top-Modell zum Stromschienen fertigen |
| Working power | 82 to / 820 kN |
|---|---|
| Tooling height | 300 mm / 11.81" (inch) |
| Bending capacity flat | 300 / 20 (30) mm |
| Straightening capacity | HEA 260 |
| Pipe bending | 3/8" - 3" |
| Round bar | ø 60 mm |
| Control | Manual control |
| Typical applications | Metal construction, strong universal bending machine |
| Working power | 82 to / 820 kN |
|---|---|
| Tooling height | 300 mm / 11.81" (inch) |
| Bending capacity flat | 300 / 20 (30) mm |
| Straightening capacity | HEA 260 |
| Pipe bending | 3/8" - 3" |
| Round bar | ø 60 mm |
| Control | CNC Control |
| Working power | 82 to / 820 kN |
|---|---|
| Tooling height | 300 mm / 11.8" (inch) |
| Bending capacity flat | 300 / 20 (30) mm |
| Pipe bending | 3/8" - 3.0" |
| Control | CNC Control |
| Working power | 82 to / 820 kN |
|---|---|
| Tooling height | 250 mm / 9.84" (inch) |
| Bending capacity flat | 300 / 20 mm |
| Control | CNC Control |
| Speciality | Das Top-Modell zum Stromschienen fertigen |
| Working power | 130 to / 1300 kN |
|---|---|
| Tooling height | 300 mm / 11.81" (inch) |
| Bending capacity flat | 300 / 30 (40) mm |
| Straightening capacity | HEB 300 |
| Pipe bending | 3/8" - 3" |
| Control | Manual control |
| Typical applications | Metal construction, strong universal bending machine |
| Working power | 130 to / 1300 kN |
|---|---|
| Tooling height | 300 mm / 11.81" (inch) |
| Bending capacity flat | 300 / 30 (40) mm |
| Straightening capacity | HEB 300 |
| Pipe bending | 3/8" - 3" |
| Control | CNC Control |
| Working power | 220 to / 2200 kN |
|---|---|
| Tooling height | 600 mm / 23.62" (inch) |
| Straightening capacity | HEA/HEB 600 |
| Pipe bending | 4" |
| Working power | 220 to / 2200 kN |
|---|---|
| Tooling height | 600 mm / 23.62" (inch) |
| Straightening capacity | HEA/HEB 600 |
| Pipe bending | 4" |
| Control | NC control |
| Working power | 220 to / 2200 kN |
|---|---|
| Tooling height | 600 mm / 23.62" (inch) |
| Straightening capacity | HEA/HEB 600 |
| Pipe bending | 4" |
| Control | CNC Control |
| Working power | 330 to / 3300 kN |
|---|---|
| Tooling height | 850 mm / 33.46" (inch) |
| Straightening capacity | HEB 1000 |
| Pipe bending | 4" |
| Control | Manual control |
| Working power | 220 to / 2200 kN |
|---|---|
| Tooling height | 850 mm / 33.46" (inch) |
| Straightening capacity | HEB 1000 |
| Pipe bending | 4" |
| Control | CNC Control |
| Working power | 330 to / 3300 kN |
|---|---|
| Tooling height | 850 mm / 33.46" (inch) |
| Straightening capacity | HEB 1000 |
| Pipe bending | 4" |
| Control | NC control |
| Working power | 440 to / 4400 kN |
|---|---|
| Tooling height | 1050 mm / 41.33" (inch) |
| Straightening capacity | HEM 1000 |
| Pipe bending | 4" |
| Control | Manual control |
| Working power | 440 to / 4400 kN |
|---|---|
| Tooling height | 1050 mm / 43.33" (inch) |
| Straightening capacity | HEM 1000 |
| Pipe bending | 4" |
| Control | NC control |
| Working power | 440 to / 4400 kN |
|---|---|
| Tooling height | 1050 mm / 41.33" (inch) |
| Straightening capacity | HEM 1000 |
| Pipe bending | 4" |
| Control | CNC Control |
| Working power | 600 to / 6000 kN |
|---|---|
| Tooling height | 1050 mm / 41.33" (inch) |
| Pipe bending | 4" |
| Control | NC control |
| Working power | 880 to / 8800 kN |
|---|---|
| Tooling height | 1200 mm / 47.24" (inch) |
| Straightening capacity | HLR 1100 |
| Pipe bending | 4" |
| Control | NC control |
